Welcome, fellow testers! If you've been in the software testing game for a while or are just starting, you've probably heard the term 'White-Box Testing.'

In this comprehensive guide, we will pull back the curtain on White-Box Testing, showing you the what, why, and how to do it the right way. We will dive into its advantages, discuss some of its challenges, and explore the tools that will make your life easier when white-box testing.

So, please grab a cup of tea or coffee (or your favorite drink), and let's start our journey into the fascinating world of White-Box Testing.

Table of Contents

• What is White-Box Testing?
• Importance of White-Box Testing
• White-Box Testing Techniques
• Advantages of White-Box Testing
• Disadvantages of White-Box Testing
• How to Perform White-Box Testing
• Tools for White-Box Testing
• Best Practices for White-Box Testing
• Common Pitfalls in White-Box Testing
• Conclusion
• Quiz on White Box Testing
• Frequently Asked Questions on White Box Testing

What is White-Box Testing?

White-Box Testing, also known as Clear, Glass, or Structural testing, dives deep into the software's structure, peeping into the hidden nooks and crannies.

Here, the tester isn't just interested in the 'what' (like in black-box testing) and the 'how'. It's like being a mechanic checking under the hood of a car instead of just driving it to see if it works.

In this testing methodology, the interior design and the code are visible to the tester - hence, the term 'white box.' Now, imagine being a detective with X-ray glasses! You can see and test everything. Cool, right?

Importance of White-Box Testing

White-box testing is crucial as it helps us validate the internal correctness of the code. Let us look at the reasons why White-box testing is essential.

1. Thoroughness: White-box testing is like our personal detective – it doesn't just stop at the surface. It digs deep. It examines every line of code, every decision point, every loop, and every path. It's like a deep spring cleaning for your code.

2. Early Bug Detection: Remember how our moms always told us, "A stitch in time saves nine"? That's exactly what white-box testing does. Anytime you identify and solve bugs early in your software development life cycle, it reduces your overall software development cost. It is always cheaper.

3. Optimization: White-box testing doesn't just find bugs. It also helps us improve our code. It can reveal redundant code, unnecessary loops, and areas that could be optimized. It's like having a personal trainer for your code.

4. Security: White-box testing helps us identify potential security vulnerabilities in our code. It's our security guard keeping a watchful eye on the integrity of our code.

5. Promotes Better Design: When developers know their code will undergo white-box testing, they're encouraged to write cleaner, more modular code. It's like knowing you have guests coming over so you keep your house tidy.

6. Comprehensive Coverage: We can ensure that all branches and paths in our code have been tested using coverage tools. It's like having a checklist for a treasure hunt.

It is not just about making software that works but also about ensuring it works flawlessly, efficiently, and securely.

White-Box Testing Techniques

The primary goal of white-box texting is to ensure you are validating every line of code. Like there are various coding techniques, there are multiple techniques we can deploy for our White-box testing. Here are some of the white-box testing techniques:

1. Statement Coverage: This technique ensures every line of your code is executed at least once. Imagine you're proofreading a novel and need to read every single line to find any typos. That's statement coverage, but for code, not books!

2. Branch/Decision Coverage: In this technique, you focus on your code's decision points. If your code were a Choose-Your-Own-Adventure book, this would be like making sure you read every possible storyline. Every 'if,' 'else,' 'case,' or other decision point is tested.

3. Condition Coverage: This is all about checking every condition in your decision points. If your decision point is a complex condition (like if A and B or C), you must test all possibilities of A, B, and C.

4. Path Coverage: With this technique, you're looking at decision points and sequences of decisions. You're testing every possible path through your code, like making sure you explore every possible route through a maze.

5. Loop Coverage: This one focuses on loops in your code. You need to test what happens if the loop never runs (e.g., a 'for' loop with a range of 0), what happens the first time it runs, and what happens when it runs multiple times.

6. Function/Method Coverage: The goal is to ensure that all functions or methods in your code are called and executed. It's like making sure you use all the tools in your toolbox at least once.

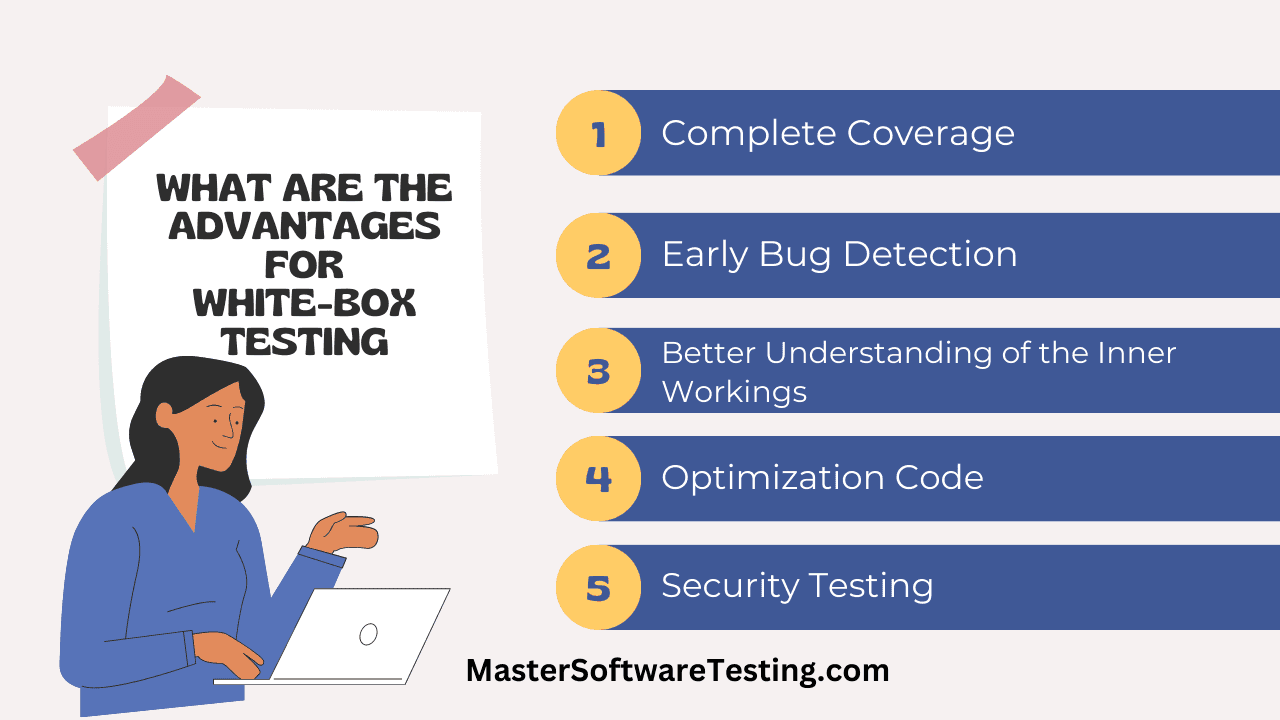

Advantages of White-Box Testing

White-Box Testing offers a ton of advantages. Here are the few main benefits of White-Box testing:

1. Complete Coverage: With white-box testing, no line of code can hide from you. This testing approach encourages comprehensive code coverage, ensuring every pathway, decision point, and function is tested. It's like confirming you've read every word of a book, not just skimmed the summary.

2. Early Bug Detection: White-box testing is like having your early-warning system for bugs. Since it involves testing software at the code level, bugs can be detected and squashed early in the development process, reducing the cost and time for bug fixes later.

3. Better Understanding of the Inner Workings: Just like understanding how a clock works can help you fix it, understanding the inner workings of your software can help you design better tests and more effectively identify problems. White-box testing gives you that inside look.

4. Optimization Code: With the ability to see the inner workings of the code, you're in a prime position to identify opportunities for code optimization. You can spot inefficiencies and suggest improvements, making the software run smoother and faster - like giving it a super boost!

5. Security Testing: One of the critical advantages of white-box testing is its effectiveness in identifying security holes in the code. It's like being the software's bodyguard, protecting it from potential threats.

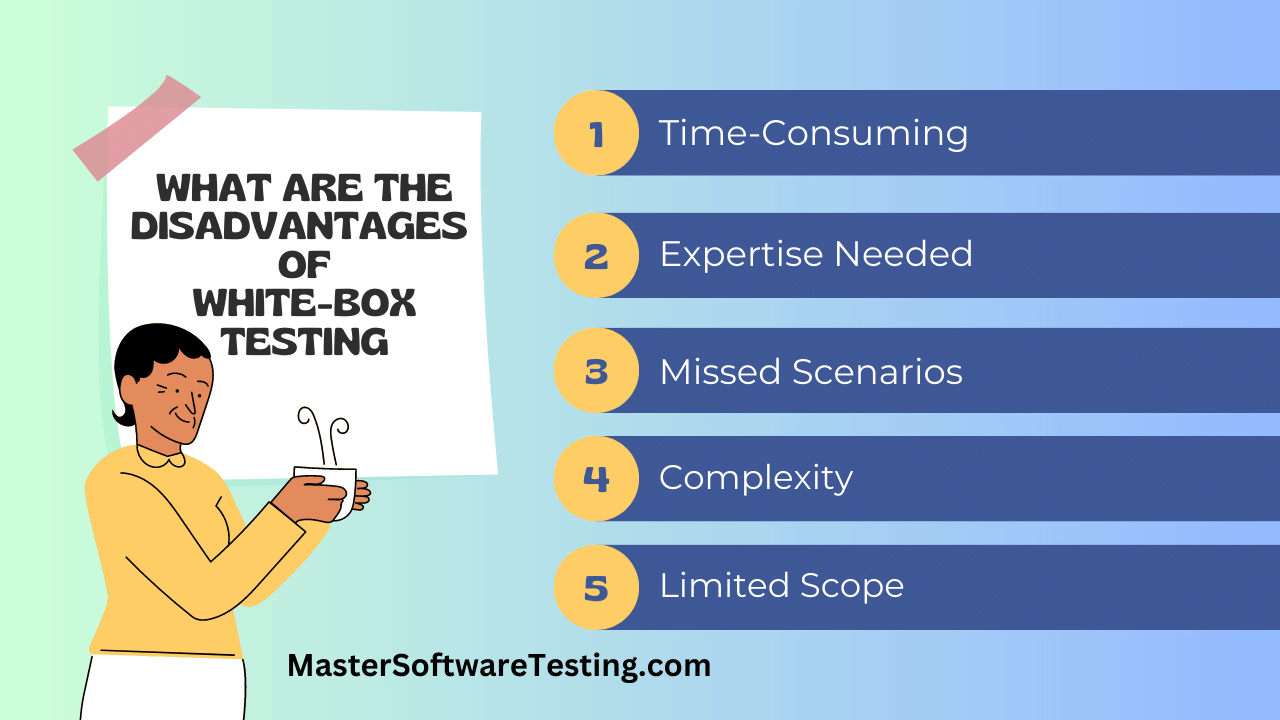

Disadvantages of White-Box Testing

Don't get me wrong, white-box testing is absolutely fantastic, but like any superhero, it has its Achilles heel. Let's unmask these disadvantages:

1. Time-Consuming: Imagine trying to read every single page of the internet. Overwhelming, right? That's what white-box testing can feel like. It's detailed and thorough, which also means it's time-consuming.

2. Expertise Needed: You're diving deep into the code with white-box testing. You're not just skimming the surface; you're exploring the ocean depths, and you need to know how to swim. In simpler terms, you must possess coding skills and know the system's internal structure.

3. Missed Scenarios: While you're busy examining every line of code, you might miss the bigger picture, like how the software behaves or interacts with the user. It's like being so focused on the individual trees that you miss the forest.

4. Complexity: Some software is like a labyrinth, filled with complex, interwoven code. Testing such intricate systems can be challenging and potentially leave some unexplored paths.

5. Limited Scope: White-box testing is great for unit testing and integration testing, but it could be more effective for system testing and acceptance testing, where the focus is more on the software's functionality and user experience.

How to Perform White-Box Testing with an Example

Performing White-Box Testing is like baking a cake. You need to follow specific steps and have the right ingredients, or in this case, tools. You start by understanding the source code, creating test cases and inputs, executing the tests, and analyzing the results.

Let's take a journey into the inner workings of a simple calculator application. Our task will be to test a function that calculates the factorial of a number.

Now, let's look at how this function might be implemented in code:

def factorial(n):
    if n < 0:
        raise ValueError("Input must be a non-negative integer")
    elif n == 0 or n == 1:
        return 1
    else:
        result = 1
        for i in range(2, n + 1):
            result *= i
        return result

The code is pretty straightforward.

• It first checks if the input is less than 0 and raises an error if it is.
• If the input is 0 or 1, it returns 1 since the factorial of 0 and 1 is 1.
• Otherwise, it calculates the factorial by initializing a variable result to 1 and then successively multiplying the result by each integer from 2 up to n.

Let's roll up our sleeves and start with our white box testing. We will create test cases based on the structure of the code:

1. Test with a negative number: This should raise a ValueError. So, if we call factorial(-5), we should expect a ValueError with the message "Input must be a non-negative integer."

2. Test with 0 or 1: The function should return 1 for these inputs. So, if we call factorial(0) or factorial(1), we should expect the output to be 1.

3. Test with a positive number greater than 1: The function should return the correct factorial. So, if we call factorial(5), we should expect the output to be 120.

As you can see, with white-box testing, we're diving deep into the "how" of the code, using our understanding of the internal structure of the function to guide our test case design.

Tools for White-Box Testing

There are many popular tools to help you with White-Box Testing. These tools are like our trusty companions, helping us navigate the complex code landscapes and ensuring we don't miss any bugs lurking in the corners. Let's get to know them:

• JUnit: This is one of Java's most popular unit testing tools. It's like our dependable detective, helping us uncover hidden bugs in our Java code.

• NUnit: NUnit is your go-to tool for those using .NET languages like C#. It's JUnit's .NET cousin and just as reliable.

• Jasmine: If you're working with JavaScript, meet Jasmine. She's your new best friend, offering a clean, straightforward syntax for testing your JavaScript code.

• Pytest: Python programmers, say hello to Pytest. It's a full-featured Python testing tool that can handle anything from simple unit tests to complex functional testing.

• Emma: Emma is a free Java code coverage tool. Think of her as the watchful eye, ensuring no line of code goes untested.

• Cobertura: Another Java code coverage tool, Cobertura, gives you insights into how much your code is being tested. It's like our auditing buddy, ensuring we're doing our job right!

• GCov: For those of you in the C/C++ world, GCov is a tool you'll want in your toolbox. It's a code coverage tool helping ensure your tests are thorough.

So, whether you're a Java, a Python, a JavaScript, or a C# champ, there's a tool out there for you.

Best Practices for White-Box Testing

Think of these as the cardinal rules, the code of conduct, the "dos and don'ts" for our thrilling quest to hunt down bugs using White-Box testing.

1. Know Your Code: This is rule number one, folks. It's like being a detective - you must know your suspect (code) inside out. Understand the logic, the structure, and the intricacies. The better you know your code, the better you can test it.

2. Plan Your Tests: Don't just dive in. Plan your tests based on the function or module you're testing. It's like plotting a treasure hunt - you need a map!

3. Cover All Paths: Make sure you cover all paths your code could take. This means testing all decision points, loops, conditions, etc. Remember, bugs are sneaky and love to hide in the places you'd least expect.

4. Automate Where Possible: Automation is your friend, my friend. Automated tests save time and ensure consistency. Plus, they're like tireless robots that never miss a thing.

5. Use Coverage Tools: These tools are like your personal code auditors. They ensure that every single line of code has been tested. Tools like Emma, Cobertura, and GCov are great for this.

6. Review and Refactor: After testing, review your code. Look for areas that could be optimized or refactored. It's like giving your code an excellent polish after a thorough cleaning.

7. Continuous Testing: Don't test just once. Test continuously. As your code evolves, so should your tests. It's like keeping your house clean - a continuous process.

8. Teamwork: Last but not least, remember, teamwork makes the dream work. Collaborate with your team, share insights, and learn from each other.

White-Box Testing can seem daunting, but it's a walk in the park with the proper practices. Create and follow a robust testing strategy, select the right tools, and prioritize the areas that need testing. Most importantly, always be ready to learn and adapt.

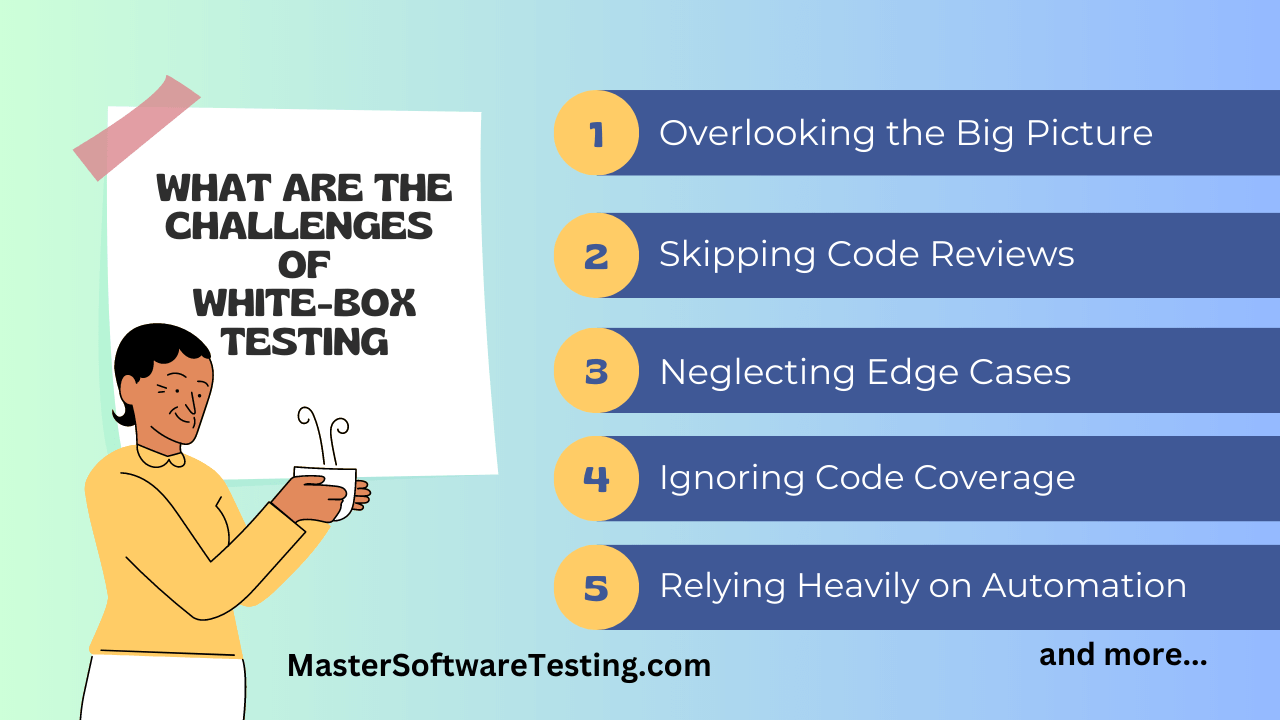

Common Pitfalls in White-Box Testing

Even with the best intentions, there are common pitfalls in White-Box Testing. These are the sneaky traps that can trip up even the most seasoned of testers. But don't worry; I'll guide you through them so you can avoid these bugs in your bug-hunting journey!

1. Overlooking the Bigger Picture: It's easy to get lost in the maze of code and needs to remember the software's overall functionality. Remember, a feature might work perfectly in isolation but fail when integrated with other parts. So, keep sight of that big picture!

2. Skipping Code Reviews: Code reviews are like your road map in your testing journey. Skipping them is like leaving a trip without a map - you're bound to get lost. So, always take the time to understand and review the code.

3. Neglecting to Test for Edge Cases: Edge cases are like the elusive creatures of the testing world - often forgotten but crucial. They test the limits of your software and can often uncover hidden bugs. So, remember to always test for edge cases.

4. Relying Too Heavily on Automation: Automation is great, don't get me wrong. But it's not a magic solution. Automated tests can miss things that a human tester would catch. So, use automation wisely and always supplement it with manual testing.

5. Ignoring Code Coverage: Code coverage tools are your trusty sidekicks in the testing journey. Ignoring them is like turning a blind eye to a valuable resource. Use them to ensure you're testing every inch of your code.

6. Failing to Update Tests: As the code evolves, so should your tests. You need to update your tests to fit a square peg into a round hole - it won't work.

7. Inadequate Documentation: Documentation is like the breadcrumbs you leave behind in your testing journey. With it, it's easy to get lost, remember what you've done, or struggle to explain your process to others.

Conclusion

And that's a wrap on White-Box Testing!

It is a crucial aspect of software testing that helps enhance the software's quality and performance.

Sure, it has its challenges, but remember, what doesn't kill you makes you stronger!

So gear up, put on your detective hat, and get ready to hunt some bugs.
