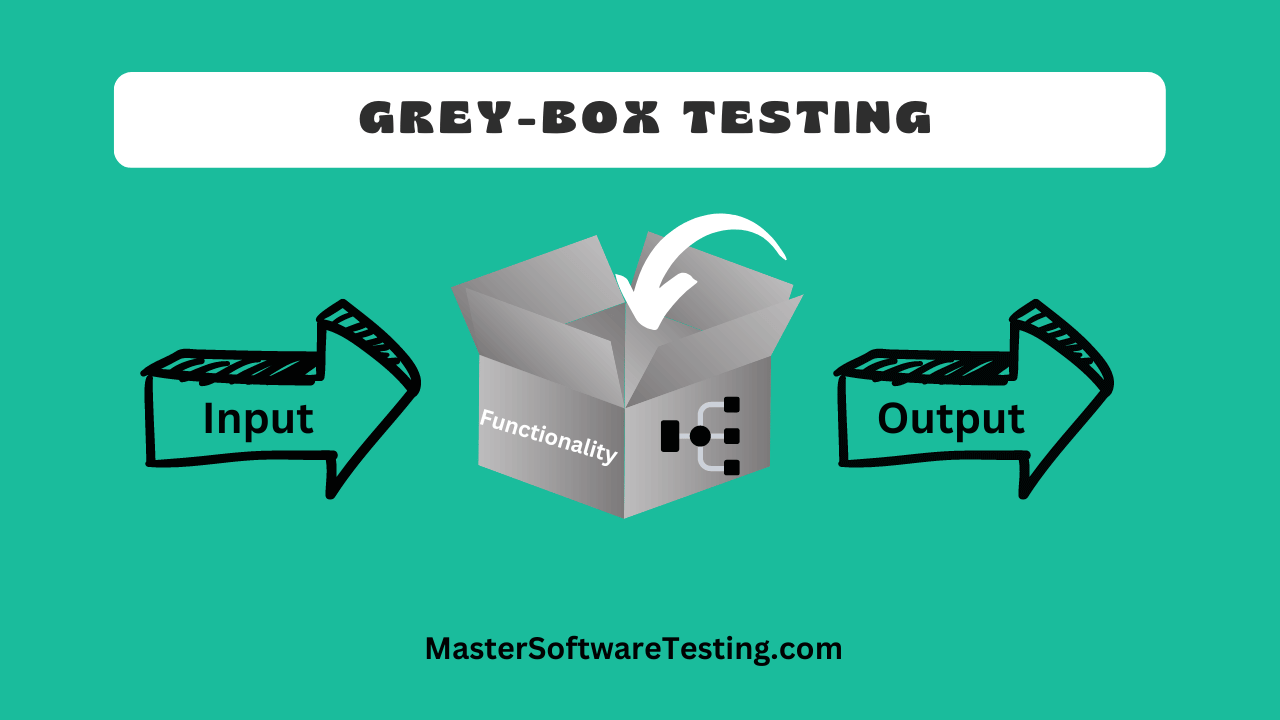

Grey-box testing combines elements of both black-box testing and white-box testing. Testers have partial knowledge of the system's internal workings - enough to design informed test cases, but not complete visibility into all code paths and implementation details.

The name reflects this middle ground: not the complete darkness of black-box (no internal knowledge) and not the full transparency of white-box (complete code access). Grey-box testers typically understand system architecture, database structures, API contracts, or data flow patterns without examining every line of source code.

This hybrid approach proves especially effective for integration testing, API validation, and security assessments where understanding system structure improves test design without requiring full code-level analysis.

What is Grey-Box Testing

Grey-box testing is a software testing approach where testers possess partial knowledge of the system's internal structure. Unlike black-box testing where the system is completely opaque, or white-box testing where all code is visible, grey-box testing operates with limited but useful internal information.

The Core Concept

Consider testing a banking application's money transfer feature. A grey-box tester would know:

• The database tables involved (accounts, transactions, audit_log)
• The API endpoints and their expected request/response formats
• The general flow: validation, balance check, transaction creation, notification
• Key business rules like transfer limits and validation requirements

What they would NOT typically have:

• Access to the complete source code
• Knowledge of specific algorithm implementations
• Visibility into all internal error handling paths
• Details of third-party service integrations

This partial knowledge allows testers to design more targeted test cases than pure black-box testing while avoiding the complexity of full code analysis.

Types of Internal Knowledge in Grey-Box Testing

Grey-box testers may have access to different types of structural information:

The specific knowledge available determines which grey-box techniques apply best.

How Grey-Box Testing Works

The process combines external testing with structural awareness:

1. Gather available information: Review architecture documents, database schemas, API specifications, and any accessible design documentation.

2. Analyze system structure: Understand how components interact, where data flows, and what integration points exist.

3. Design informed test cases: Create tests that exercise specific paths, data combinations, or integration scenarios based on structural knowledge.

4. Execute tests externally: Run tests through the user interface or APIs, not by directly invoking internal code.

5. Validate results: Compare actual behavior against expected outcomes, using structural knowledge to diagnose failures.

This approach produces tests that are more targeted than random black-box testing while remaining independent of specific implementation details.

Key Insight: Grey-box testing finds defects that black-box testing misses because it targets specific structural elements. It finds defects that white-box testing misses because it tests actual integrated behavior rather than isolated code paths.

Why Grey-Box Testing Matters

Grey-box testing fills a practical gap between purely functional testing and code-level validation.

Testing Integration Points

Modern applications consist of multiple components: web frontends, API services, databases, message queues, and external integrations. Grey-box testing excels at validating how these components work together.

With knowledge of how components connect, testers can:

• Verify data transforms correctly between systems
• Test error handling at integration boundaries
• Validate transaction behavior across multiple services
• Check that security controls apply correctly at each layer

Black-box testing might miss integration issues that only manifest under specific data conditions. White-box testing might focus too narrowly on individual components.

Efficient Test Design

Structural awareness enables more efficient test case design:

Targeted boundary testing: Knowing that a database column is defined as VARCHAR(100) tells you to test strings of exactly 99, 100, and 101 characters.

Data-driven scenarios: Understanding table relationships helps identify which data combinations are valid, invalid, or edge cases.

State-aware testing: Knowledge of workflow states and transitions enables comprehensive state machine testing without exhaustive exploration.

Risk-focused testing: Architecture knowledge reveals which components are most critical or complex, guiding test prioritization.

Security Testing Effectiveness

Security testing benefits significantly from grey-box approaches:

Attack surface awareness: Knowing system architecture helps identify potential attack vectors without full source code analysis.

Authentication testing: Understanding how authentication flows work enables targeted testing of session management, token handling, and authorization checks.

Data exposure risks: Database schema knowledge helps verify that sensitive data is properly protected at rest and in transit.

Input validation points: Architectural understanding reveals where input validation should occur, enabling tests that verify protection at each layer.

Security professionals often prefer grey-box testing because it provides enough context to find real vulnerabilities while maintaining an attacker-like external perspective.

Realistic Testing Context

Grey-box testing validates software as it actually operates:

• Tests run through real interfaces, not test harnesses
• Data flows through actual integration points
• Performance characteristics reflect real-world behavior
• Environment dependencies affect results appropriately

This produces test results that better predict production behavior than isolated unit tests.

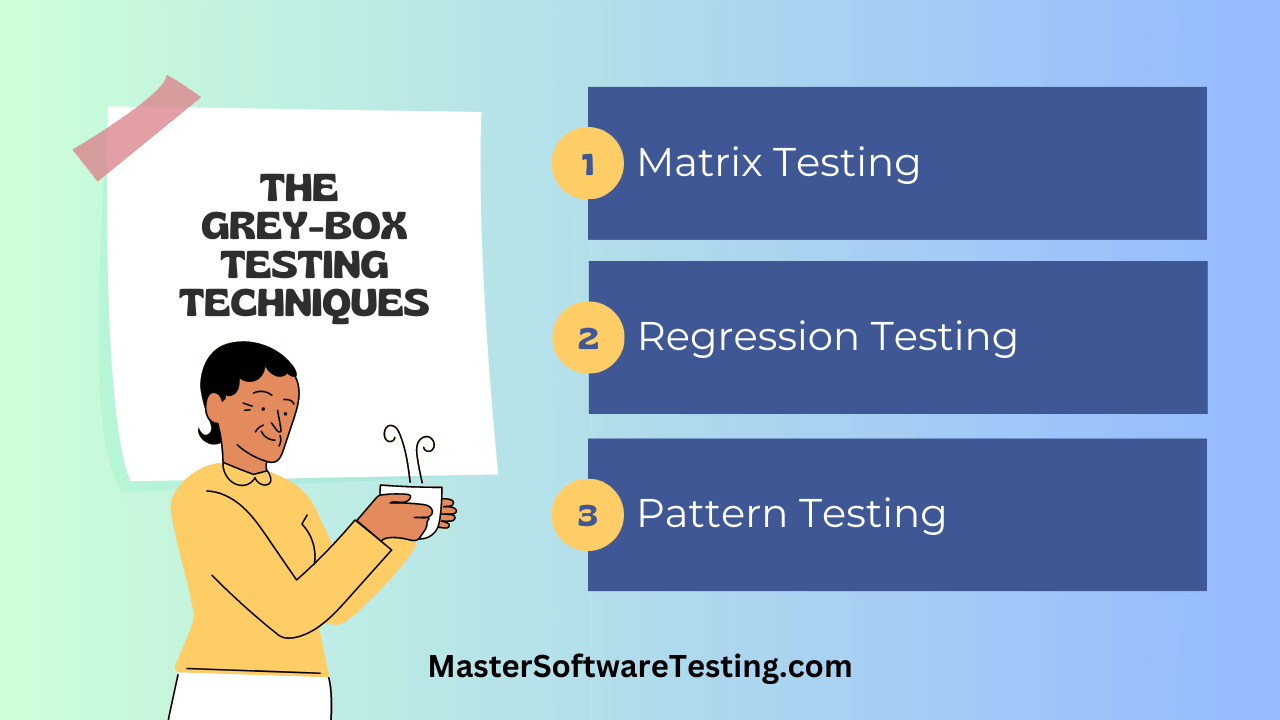

Grey-Box Testing Techniques

Several established techniques apply the grey-box approach to different testing scenarios.

Matrix Testing

Matrix testing systematically tests combinations of inputs, configurations, or states. With structural knowledge, testers can build matrices that cover critical combinations without testing every possibility.

How it works:

1. Identify input variables and their possible values
2. Determine which combinations are meaningful based on system knowledge
3. Create a matrix of test cases covering critical combinations
4. Execute tests and track results in the matrix

Example: Testing a loan application with these factors:

A full combination would require 4 x 4 x 3 x 3 = 144 test cases. With knowledge of the decision rules (for example, under 18 always rejected, credit score thresholds vary by amount), testers can reduce to perhaps 30-40 meaningful combinations.

Orthogonal Array Testing

Orthogonal Array Testing (OAT) uses mathematical arrays to select a subset of test combinations that provides balanced coverage. This technique reduces test cases while ensuring all pairs of factor values are tested together.

Benefits over random selection:

• Guarantees all factor pairs are covered
• Reduces tests from N^k to approximately N^2
• Mathematically proven coverage properties
• Systematically exposes interaction defects

Application: For an e-commerce checkout with payment method, shipping option, discount type, and gift wrap selection, orthogonal arrays reduce from 81 combinations to 9-16 tests while maintaining pairwise coverage.

Regression Testing

Regression testing verifies that changes have not broken existing functionality. Grey-box approaches improve regression testing efficiency:

Impact analysis: Understanding system structure helps identify which tests are relevant to specific changes.

Dependency tracking: Knowledge of component dependencies reveals which areas need retesting when components change.

Data impact assessment: Database schema knowledge helps determine if data changes require specific regression tests.

Integration focus: Architectural awareness guides testing of integration points that changes might affect.

Pattern Testing

Pattern testing identifies recurring code patterns or data patterns and tests them systematically. With structural knowledge, testers can:

Identify repeated patterns: Similar form validations, API endpoint structures, or data processing flows.

Create reusable test templates: Design tests that apply across similar components.

Focus on pattern variations: Test how the pattern behaves differently in various contexts.

Detect inconsistencies: Find places where expected patterns are implemented incorrectly.

Example: An application uses a common pattern for all CRUD operations. Pattern testing would verify that Create, Read, Update, and Delete work correctly for each entity, including authorization checks, validation rules, and audit logging.

State-Based Testing

State-based testing validates systems where behavior depends on current state. Grey-box knowledge of state machines enables comprehensive coverage:

State identification: Know all valid states from system documentation or database enums.

Transition mapping: Understand what events cause transitions between states.

Guard condition testing: Test conditions that must be true for transitions to occur.

Invalid transition testing: Verify that invalid state changes are properly rejected.

Example: Order processing states (New, Pending, Confirmed, Shipped, Delivered, Cancelled):

Grey-box knowledge of the state machine enables complete transition coverage.

Database Testing

Database-focused grey-box testing validates data integrity, constraints, and stored procedures:

Constraint testing: Verify that database constraints (foreign keys, unique indexes, check constraints) work correctly.

Stored procedure testing: Test database procedures with knowledge of expected inputs and outputs.

Data integrity validation: Ensure transactions maintain referential integrity across tables.

Index effectiveness: Verify that queries use appropriate indexes.

-- Example: Testing a foreign key constraint
-- Knowledge: orders.customer_id references customers.id

-- Test: Creating order with invalid customer should fail
INSERT INTO orders (customer_id, amount) VALUES (99999, 100.00);
-- Expected: Foreign key violation error

-- Test: Deleting customer with existing orders
DELETE FROM customers WHERE id = 1;
-- Expected: Either cascade delete or constraint violation based on schema

Grey-Box vs Black-Box vs White-Box Testing

Understanding the differences between testing approaches helps determine when to apply each method.

Comparison Table

What Each Approach Catches

Black-box testing uniquely catches:

• Usability problems from pure user perspective
• Missing features not in specifications
• Requirements misinterpretations without technical bias
• End-to-end workflow issues

Grey-box testing uniquely catches:

• Integration defects at component boundaries
• Data transformation errors
• State management issues across systems
• Security vulnerabilities in architecture
• Performance bottlenecks from design flaws

White-box testing uniquely catches:

• Unreachable code paths
• Algorithm implementation errors
• Memory leaks and resource issues
• Code-level security vulnerabilities
• Off-by-one errors in loops

Practical Selection Guide

Combining Approaches

Most testing strategies use all three approaches at different phases:

Development phase: White-box unit testing validates individual functions and methods.

Integration phase: Grey-box testing validates component interactions and data flows.

System testing phase: Black-box functional testing verifies end-to-end requirements.

Security testing: Combines white-box code analysis with grey-box architecture review and black-box penetration testing.

Each approach contributes unique value. Comprehensive quality assurance requires all three.

When to Use Grey-Box Testing

Grey-box testing applies best in specific scenarios where partial knowledge provides significant advantage.

Ideal Scenarios for Grey-Box Testing

Integration Testing

When testing how components work together, grey-box knowledge helps:

• Identify critical integration points
• Design tests that stress data transformations
• Verify error handling across boundaries
• Test timeout and retry mechanisms

API Testing

API testing is inherently grey-box. You know:

• Endpoint structures and parameters
• Expected request and response formats
• Authentication requirements
• Error code meanings

You typically do not have:

• Implementation details behind endpoints
• Database queries executed
• Third-party calls made

Database Testing

Testing data persistence and retrieval benefits from schema knowledge:

• Constraint validation
• Transaction isolation testing
• Stored procedure validation
• Migration verification

Security Testing

Security assessments often use grey-box approaches:

• Known architecture helps identify attack surfaces
• Authentication flow understanding enables targeted tests
• Data classification knowledge guides privacy testing
• Without full code access, tests remain realistic

Legacy System Testing

When testing systems with limited documentation:

• Database reverse-engineering reveals structure
• API inspection provides interface knowledge
• Observable behavior fills documentation gaps
• Complete code understanding may be impractical

Scenarios Where Grey-Box May Not Be Best

Pure Functional Verification: When testing only whether features work from user perspective, black-box suffices.

Code Coverage Goals: When targeting specific code coverage percentages, white-box testing provides necessary visibility.

Unit Testing: Testing individual functions in isolation requires white-box access.

Usability Testing: User experience testing should use pure black-box to maintain user perspective.

Team and Project Factors

Grey-box testing works well when:

• Testers have technical skills: Reading schemas, understanding APIs, and analyzing architecture requires technical background.

• Documentation exists: Architecture diagrams, API specs, and database schemas must be available.

• Integration is complex: Simple applications may not benefit from structural awareness.

• Time permits analysis: Understanding structure takes time before testing begins.

• Security is important: Financial, healthcare, and other sensitive applications benefit from informed security testing.

How to Perform Grey-Box Testing

Follow this systematic process to implement grey-box testing effectively.

Phase 1: Information Gathering

Collect available structural information:

Architecture documentation

• System diagrams showing component relationships
• Data flow diagrams
• Sequence diagrams for key workflows
• Deployment architecture

Database information

• Entity-relationship diagrams
• Table schemas and constraints
• Stored procedures and triggers
• Index structures

API specifications

• Endpoint documentation (OpenAPI/Swagger)
• Authentication methods
• Request/response formats
• Error codes and meanings

Configuration details

• Feature flags and settings
• Environment-specific configurations
• Threshold values and limits
• Third-party integrations

Document gaps in available information. Missing documentation may indicate areas needing exploratory testing.

Phase 2: Analysis and Planning

Analyze gathered information to guide test design:

Identify critical paths: Determine which data flows and component interactions are most important.

Map integration points: Document where components connect and what data passes between them.

Assess risk areas: Identify complex logic, security-sensitive functions, and areas with limited documentation.

Determine test priorities: Focus on high-risk, high-impact areas first.

Select techniques: Choose appropriate grey-box techniques based on system characteristics:

• Matrix testing for configuration combinations
• State testing for workflow systems
• Database testing for data-intensive applications

Phase 3: Test Case Design

Design test cases using structural knowledge:

Data-driven test cases: Use schema knowledge to create valid, invalid, and boundary data combinations.

Example: User registration with email field (VARCHAR(255), UNIQUE constraint)

Test cases derived from schema knowledge:
- Valid email at maximum length (255 chars)
- Email exceeding 255 characters (expect truncation or error)
- Duplicate email (expect unique constraint violation)
- Email with special characters allowed by format
- NULL email (if nullable) or required validation

Integration test cases: Design tests that validate component interactions.

Example: Order service calls inventory service

Test cases from architecture knowledge:
- Successful inventory reservation
- Inventory service timeout handling
- Partial inventory availability
- Inventory service returns error
- Concurrent order requests for same item

State transition test cases: Cover all valid transitions and test invalid ones.

Security test cases: Target authentication, authorization, and data protection based on architecture.

Phase 4: Test Execution

Execute tests through external interfaces:

• Run API tests through HTTP clients
• Execute UI tests through browser automation
• Trigger database tests through application actions
• Monitor system behavior during execution

Capture evidence:

• Request and response data
• Database state changes
• Log entries
• Performance metrics

Phase 5: Analysis and Reporting

Analyze results using structural knowledge:

Diagnose failures: Use architectural understanding to identify failure root causes.

Assess impact: Determine how defects affect other components based on dependencies.

Prioritize issues: Rate severity based on business impact and technical risk.

Document findings: Include technical context that helps developers reproduce and fix issues.

Grey-Box Testing Examples

Concrete examples illustrate grey-box testing in practice.

Example 1: E-Commerce Order Processing

Available knowledge:

• Database schema: orders, order_items, inventory, payments tables
• API: POST /orders, GET /orders/:id, PUT /orders/:id/status
• States: pending, confirmed, processing, shipped, delivered, cancelled
• Business rule: Orders over $500 require manager approval

Grey-box test cases:

Example 2: Authentication System Testing

Available knowledge:

• Database: users table with password_hash, failed_attempts, locked_until columns
• API: POST /auth/login, POST /auth/logout, POST /auth/refresh
• Rules: 5 failed attempts locks account for 15 minutes
• Token: JWT with 1-hour expiry, refresh token with 7-day expiry

Grey-box test cases:

TC1: Account Lockout
- Attempt login with wrong password 5 times
- Expected: Account locked, locked_until set to NOW + 15 minutes
- Verify: Cannot login with correct password while locked

TC2: Token Expiration
- Login successfully, obtain access token
- Wait for token to expire (or mock time)
- Attempt API call with expired token
- Expected: 401 Unauthorized response

TC3: Refresh Token Flow
- Login, let access token expire
- Use refresh token to obtain new access token
- Expected: New access token issued, refresh token updated

TC4: Concurrent Sessions
- Login from Device A, obtain tokens
- Login from Device B with same credentials
- Expected: Both sessions valid OR first session invalidated (based on design)

Example 3: Data Migration Testing

Scenario: Migrating customer data from legacy system to new platform.

Available knowledge:

• Source schema: customers_old (varchar names, denormalized address)
• Target schema: customers (normalized with first_name, last_name, separate address table)
• Mapping rules: Split full_name on space, parse address components

Grey-box test cases:

Grey-box knowledge enables targeted testing of transformation edge cases.

Example 4: API Rate Limiting

Available knowledge:

• Rate limit: 100 requests per minute per API key
• Headers: X-RateLimit-Limit, X-RateLimit-Remaining, X-RateLimit-Reset
• Behavior: 429 Too Many Requests when exceeded

Grey-box test cases:

TC1: Normal Usage
- Send 50 requests within one minute
- Verify: X-RateLimit-Remaining decrements correctly
- Expected: All requests succeed

TC2: At Limit
- Send exactly 100 requests within one minute
- Verify: 100th request succeeds, X-RateLimit-Remaining = 0
- Expected: Headers accurately reflect state

TC3: Exceed Limit
- Send 101 requests within one minute
- Expected: 101st request returns 429
- Verify: Retry-After header present

TC4: Limit Reset
- Exceed limit, wait for reset time
- Send new request after reset
- Expected: Request succeeds, limits restored

Tools for Grey-Box Testing

Grey-box testing uses tools from both functional testing and technical analysis domains.

API Testing Tools

Database Testing Tools

Integration Testing Tools

Security Testing Tools

Test Design Tools

Monitoring and Analysis

Choose tools based on your technology stack and testing requirements. Many teams combine several tools for comprehensive grey-box testing coverage.

Advantages and Limitations

Understanding grey-box testing trade-offs helps apply it appropriately.

Advantages

Limitations

When Grey-Box Testing Provides Most Value

Grey-box testing provides maximum value when:

• Integration complexity is high: Many components interacting through various interfaces.

• Database logic is significant: Stored procedures, triggers, or complex constraints need validation.

• Security is critical: Financial, healthcare, or other sensitive applications.

• API testing is required: External or internal API validation.

• Legacy systems are involved: Complete code access is impractical or unavailable.

• Time is constrained: More efficient than exhaustive black-box exploration.

Best Practices for Grey-Box Testing

Follow these practices for effective grey-box testing implementation.

1. Invest in Understanding Architecture

Spend time learning system structure before designing tests:

• Read architecture documentation thoroughly
• Review database schemas and relationships
• Study API specifications in detail
• Understand data flow patterns

This investment pays off through more effective test design.

2. Maintain Documentation Currency

Structural knowledge must stay current:

• Update test documentation when architecture changes
• Review API specs before each test cycle
• Verify database schemas match expectations
• Track configuration changes that affect testing

Outdated knowledge produces ineffective tests.

3. Focus on Integration Boundaries

Prioritize testing at component boundaries:

• Data transformations between systems
• Error handling at integration points
• Transaction behavior across services
• Authentication and authorization at boundaries

Boundaries are where integration defects occur.

4. Combine Techniques Appropriately

Apply multiple grey-box techniques based on system characteristics:

• Stateful systems: State-based testing
• Configuration-heavy: Matrix testing
• Data-intensive: Database testing
• API-based: Contract testing
• Security-sensitive: Architecture-informed penetration testing

No single technique covers all scenarios.

5. Automate Repetitive Tests

Automate tests that run frequently:

• API regression tests
• Database constraint validation
• State transition verification
• Integration smoke tests

Reserve manual testing for exploratory scenarios.

6. Validate Assumptions

Verify that structural knowledge is accurate:

• Confirm database constraints actually exist
• Test that documented API behavior matches reality
• Verify configuration values match documentation
• Check that state machines work as documented

Documentation can be wrong or outdated.

7. Collaborate with Development Teams

Leverage developer knowledge while maintaining independence:

• Ask about complex logic without reading code
• Discuss integration patterns and expected behaviors
• Share findings to improve documentation
• Request architecture reviews for complex systems

Collaboration improves understanding without compromising objectivity.

8. Document Structural Dependencies

Record which tests depend on specific structural knowledge:

• Tests that rely on specific database schema
• Tests assuming particular API versions
• Tests dependent on configuration values
• Tests that require specific state sequences

This documentation helps maintain tests when structure changes.

Common Challenges and Solutions

Address these frequent grey-box testing obstacles.

Challenge 1: Incomplete Documentation

Problem: Architecture documentation is missing, outdated, or inaccurate.

Solutions:

• Reverse-engineer from databases: Inspect actual schema to understand data structures.
• Analyze API behavior: Use tools like Postman to document actual API responses.
• Review code commits: Git history reveals recent structural changes.
• Interview developers: Gather architectural knowledge through conversations.
• Create documentation as you learn: Document findings for future testing.

Prevention: Advocate for documentation requirements in development processes.

Challenge 2: Access Limitations

Problem: Cannot access databases, internal APIs, or architecture documents.

Solutions:

• Request read-only access: Propose limited access for testing purposes.
• Use test environments: Work with dedicated test databases and APIs.
• Collaborate with developers: Have them share relevant information.
• Infer from observable behavior: Make educated assumptions and verify through testing.
• Document access requirements: Formally request necessary permissions.

Prevention: Include testing access requirements in project planning.

Challenge 3: Rapidly Changing Systems

Problem: System structure changes frequently, invalidating test assumptions.

Solutions:

• Subscribe to change notifications: Monitor architecture decision records and API changelogs.
• Build flexible tests: Design tests that tolerate minor structural changes.
• Automate validation: Create automated checks that verify assumptions before tests run.
• Schedule regular reviews: Periodically verify that structural knowledge remains accurate.
• Prioritize stable interfaces: Focus testing on components with stable contracts.

Prevention: Establish change communication processes with development teams.

Challenge 4: Balancing Depth and Coverage

Problem: Limited time forces choice between deep testing of few areas versus shallow testing of many.

Solutions:

• Apply risk-based prioritization: Focus deep testing on high-risk components.
• Use efficient techniques: Orthogonal arrays and pairwise testing reduce combinations.
• Layer testing depth: Light coverage everywhere, deep coverage on critical paths.
• Automate breadth: Automate broad coverage tests to reserve manual time for depth.
• Iterate over time: Build coverage progressively across test cycles.

Prevention: Plan testing scope early with realistic time estimates.

Challenge 5: Coordinating with Other Testing

Problem: Grey-box testing overlaps with unit tests and functional tests.

Solutions:

• Define clear boundaries: Specify what each testing type should cover.
• Review existing coverage: Understand what unit and functional tests already validate.
• Fill gaps: Focus grey-box testing on integration areas others miss.
• Communicate with other testers: Coordinate to avoid duplication and gaps.
• Track coverage by layer: Maintain visibility into what each layer tests.

Prevention: Establish testing strategy that defines responsibilities for each approach.

Summary

Grey-box testing provides a practical middle ground between black-box and white-box approaches. By combining functional testing perspective with structural awareness, testers can design more effective tests without requiring complete code access.

Core characteristics:

• Partial knowledge of system internals (architecture, schemas, APIs)
• Testing through external interfaces, not direct code execution
• Focus on integration points, data flows, and component interactions
• Requires technical skills to understand and apply structural knowledge

Key techniques:

• Matrix testing: Systematic combination testing
• Orthogonal array testing: Mathematically optimized test selection
• State-based testing: Workflow and state machine validation
• Database testing: Schema-informed data validation
• Pattern testing: Systematic testing of recurring structures

When to apply:

• Integration testing across components
• API endpoint validation
• Database and data flow testing
• Security testing with architecture awareness
• Legacy system testing with limited access

Best practices:

• Invest in understanding system structure
• Keep structural knowledge current
• Focus on integration boundaries
• Combine multiple techniques as needed
• Automate repetitive validations
• Validate assumptions before relying on them

Grey-box testing complements both black-box functional testing and white-box code testing. A comprehensive testing strategy uses all three approaches, applying each where it provides the most value.

Continue Reading

Frequently Asked Questions (FAQs) / People Also Ask (PAA)
